Features
Benefits
- Highly reliable and affordable
- Deluxe models offer rich functionality
- Elegant and fancy appearance
- Eco mode for energy saving
- Multiple dimension to meet regional installation standard
- Fast and easy installation
Applications
- PTAC
- Fan Coil
- Heat Pump
- Gas/Oil Furnace
range | SpaceLogic | |
---|---|---|

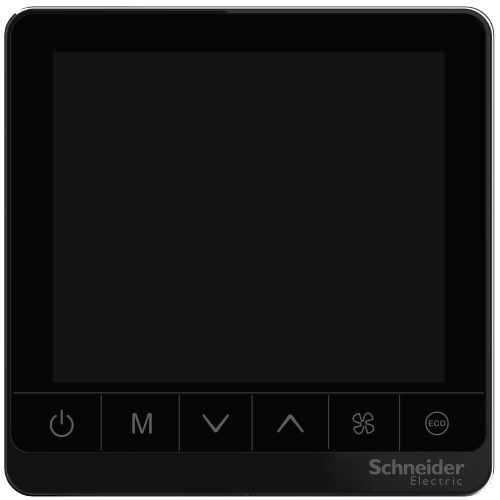

product name | SpaceLogic TC900 | |
device short name | TC907 | |
product or component type | Thermostat | |
sensor type | 100 kOhm NTC thermistor |
device application | Fan | |
---|---|---|
product specific application | 4-pipe system | |
[Us] rated supply voltage | 90…240 V AC 50/60 Hz | |
network frequency | 50 Hz 60 Hz | |
max power consumption in W | 1 W | |
communication port protocol | Modbus | |
function available | Setpoint adjustment Fan control Mode selection Economiser Disable functions Alarm Low temperature protection | |
colour | Black | |
housing colour | White | |
control type | touch screen, for thermostat 2 positions ON-OFF button, for actuator electronic, for fan | |
display type | Backlit LCD screen | |
information displayed | Ambient room temperature 0 to 50 °C Time Day Temperature alarm Communication status ok Current program | |
measurement accuracy | Temperature: +/- 1 °C, | |
number of outputs | 1 proportional | |
output voltage | 240 V AC 5 A for relay 240 V AC 2 A for load 0…10 V DC for electronic | |
connections – terminals | Screw terminal (back) – 2 cable(s) Screw terminal (back) – 1 cable(s) | |
width | 86 mm | |
depth | 40 mm | |
height | 86 mm | |
market segment | Small buildings Hotel Healthcare Residential |
temperature setting range | 5…35 °C | |
---|---|---|
relative humidity | 5…95 % | |
ambient air temperature for operation | 0…50 °C | |
standards | EN/IEC 60730-1 EN/IEC 60730-2-9 | |
product certifications | CE | |
IP degree of protection | IP20 | |
pollution degree | 2 |
Package 1 Height | 55 mm | |
---|---|---|
Package 1 width | 105 mm | |
Package 1 Length | 123 mm |
